Upgrading build to melt Solidworks and Rocket League

[Achievable]

Hello everyone, I built my first PC about 4-5 years ago and I'm ready for an upgrade. I'll mainly be working in Solidworks doing 3D CAD drawing / rendering as well as simulations in Solidworks. I'll also be playing Rocket League on a 144hz monitor.

Here is my current build: https://pcpartpicker.com/user/GiraffeMan/saved/#view=2T3Mpg

Here is what I've come up with as an upgrade thus far (I've marked the items I already own): https://pcpartpicker.com/list/PPpXbK

This was put together with help from people in the r/buildapc Discord. I'm posting to various forums to build the confidence I need to pull the trigger on ordering $1,800 worth of computer parts... Lol.

If you have any modifications you'd suggest, I'd greatly appreciate your input. If you'd like to simply help boost my confidence by supporting this list, then by all means, please do



[Why_Me]

I'd look for a board with a better power phase design in order to handle that i7 when it kicks into turbo boost such as this MSI board down below which has a 12 phase design vs the Asrock's 9 phase. Other than that your build looks solid

https://www.newegg.com/p/N82E16813144531
MSI PRO B660M-A DDR4 $139.99

PRO B660M-A DDR4 Motherboard M-ATX - Intel 12th Gen Processors

The PRO B660M-A DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset with Core Boost, Memory Boost, M.2 Shield Frozr, 2.5G LAN, Lightning Gen4

www.msi.com



[Achievable]

I'd look for a board with a better power phase design in order to handle that i7 when it kicks into turbo boost such as this MSI board down below which has a 12 phase design vs the Asrock's 9 phase. Other than that your build looks solid

https://www.newegg.com/p/N82E16813144531
MSI PRO B660M-A DDR4 $139.99

PRO B660M-A DDR4 Motherboard M-ATX - Intel 12th Gen Processors

The PRO B660M-A DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset with Core Boost, Memory Boost, M.2 Shield Frozr, 2.5G LAN, Lightning Gen4

www.msi.com

Thanks for your response! Some modifications to the build have been made based on some suggestions from other forums... What do you think of this? https://pcpartpicker.com/list/hnswzf

I like the updated build because it bumps the CPU up a bit without losing too much performance with the GPU, and CAD modeling / rendering is more of a CPU intensive task than GPU intensive.



[Why_Me]

Thanks for your response! Some modifications to the build have been made based on some suggestions from other forums... What do you think of this? https://pcpartpicker.com/list/hnswzf

I like the updated build because it bumps the CPU up a bit without losing too much performance with the GPU, and CAD modeling / rendering is more of a CPU intensive task than GPU intensive.

Personally I like your 12700F build in the OP minus that Asrock board.

The difference between the 12700F and 12700K are slim at best. This review down below sums it up as far as CAD is concerned.

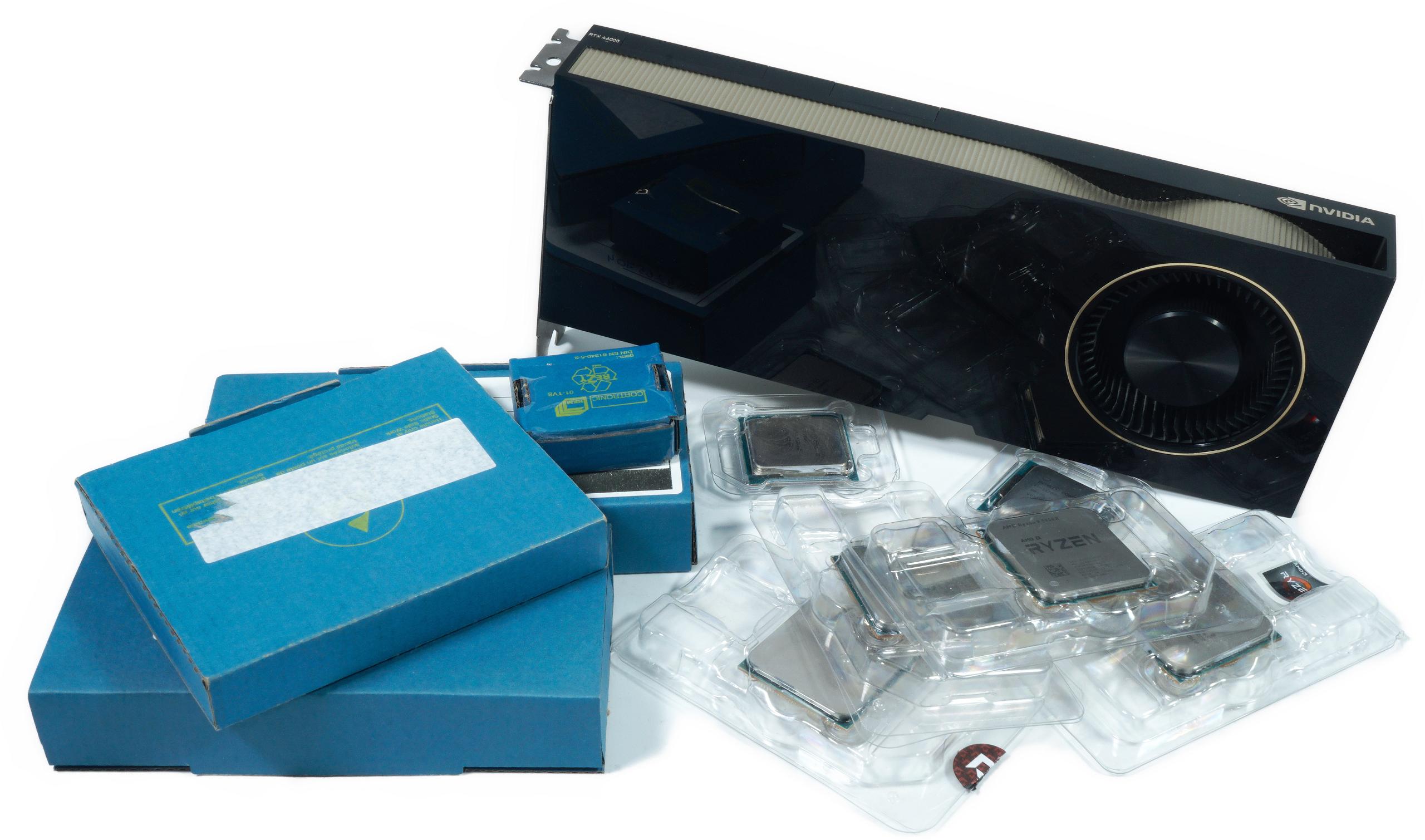

Core i9-12900KF, Core i7-12700K and Core i5-12600 in a workstation test with amazing results and an old weakness | Part 2 | Page 2 | igor´sLAB

So today I’ll get serious and show you where Alder Lake S can really score aside from colorful gaming pixels. Gaming what? Completely overrated if you look at at least some of today’s results.

www.igorslab.de



[Achievable]

Personally I like your 12700F build in the OP minus that Asrock board.

The difference between the 12700F and 12700K are slim at best. This review down below sums it up as far as CAD is concerned.

Core i9-12900KF, Core i7-12700K and Core i5-12600 in a workstation test with amazing results and an old weakness | Part 2 | Page 2 | igor´sLAB

So today I’ll get serious and show you where Alder Lake S can really score aside from colorful gaming pixels. Gaming what? Completely overrated if you look at at least some of today’s results.

www.igorslab.de

That article is very convincing. Others seem to agree with you on the CPU and board choice. One gentlemen noted that having integrated graphics with the CPU as a backup is worth the slight difference in cost between the K and F version... Which I don't mind so I'm probably going with the K just to be safe.

Here's where we're at now... https://pcpartpicker.com/list/qjHdDq



[Why_Me]

That article is very convincing. Others seem to agree with you on the CPU and board choice. One gentlemen noted that having integrated graphics with the CPU as a backup is worth the slight difference in cost between the K and F version... Which I don't mind so I'm probably going with the K just to be safe.

Here's where we're at now... https://pcpartpicker.com/list/qjHdDq

Here's your integrated graphics. 12700 = locked cpu w/integrated graphics. 12700K = unlocked cpu with integrated graphics yet higher wattage. A locked cpu is better suited for a B660 board due to its lower power consumption and the fact those boards don't overclock.

https://www.newegg.com/intel-core-i7-12700-core-i7-12th-gen/p/N82E16819118368
Intel Core i7-12700 $349.99

Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz) - Product Specifications | Intel

Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz) quick reference with specifications, features, and technologies.

ark.intel.com

Processor Graphics: Intel UHD Graphics 770



[Achievable]

Here's your integrated graphics. 12700 = locked cpu w/integrated graphics. 12700K = unlocked cpu with integrated graphics yet higher wattage. A locked cpu is better suited for a B660 board due to its lower power consumption and the fact those boards don't overclock.

https://www.newegg.com/intel-core-i7-12700-core-i7-12th-gen/p/N82E16819118368
Intel Core i7-12700 $349.99

Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz) - Product Specifications | Intel

Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz) quick reference with specifications, features, and technologies.

ark.intel.com

Processor Graphics: Intel UHD Graphics 770

You're awesome, @Why_Me !

So after some discussion and continued research I think I'm set: https://pcpartpicker.com/list/fzHdDq

Going with the Quadro RTX 4000 workstation card as I've learned that some features in Solidworks are disabled if running on a gaming card, and also support is not offered to users who aren't running on a certified workstation card. Also, benchmarks show that the Quadro RTX 4000 will improve my gaming experience over my current build, and I'm already happy with my gaming experience as it is... So I think I'm making the right choice here.
